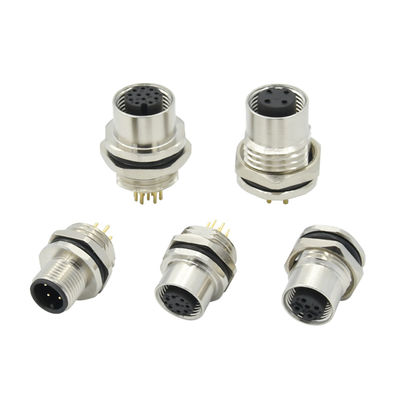

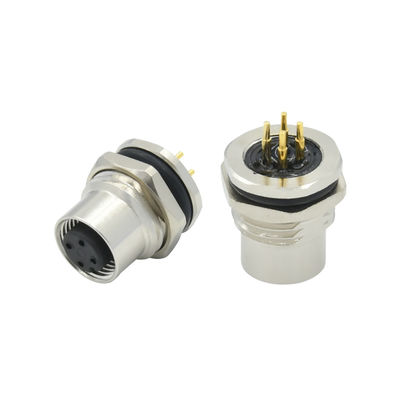

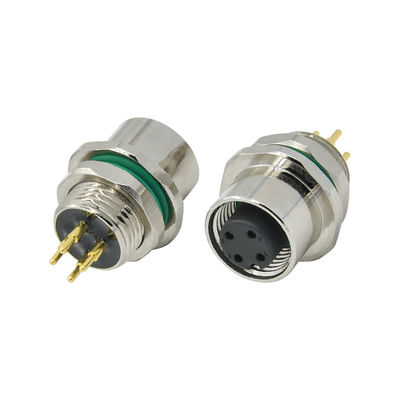

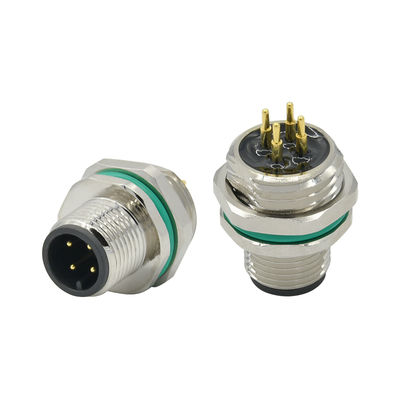

Waterproof IP67 Sensor Connector - M12 Panel Mount
Product Overview
High-quality M12 waterproof panel mount connector with IP67/IP68 protection rating, designed for automotive, sensor, and electrical equipment applications. Available in multiple pin configurations and coding types.
Key Features
- M12 Panel mount waterproof according to IEC 61076-2-104
- Circular connector with M12*1.0/M16*1.0 screw locking
- Waterproof rating: IP67/IP68

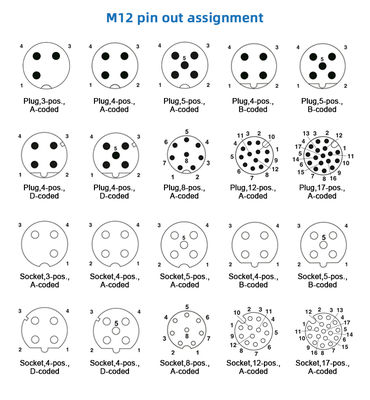

- Coding options: A/B/D
- Available in female and male versions
- Panel mount design
- Material options: Brass/Zinc or customized
- Operating temperature: -25℃~+85℃
Technical Specifications
| Attribute |
Value |
| Type |
Adapter |
| Application |
Automotive/Sensor/Electrical Equipment |
| Gender |
Female/Male |
| Number of cores |
3/4/5/8/12/17 pin |
| Mounting Type |
Soldering/PCB termination |
| Locking way |
Front/Rear fastened |
| Protection level |
IP67/IP68 Waterproof |
| Rated Voltage |
250V (3/4 pin), 60V (5/6pin), 30V (8/12/17pin) |
| Rated Current |
250V (3/4 pin), 60V (5/6pin), 30V (8/12/17pin) |
| Contact material |
Au (gold plating) |
| Housing material |
Brass/Zinc diecasting nickel plated |
| Mechanical operation |
>500 mating cycles |
| Operating Temperature |
-25℃~85 ℃ |
| Certificate |
ISO9001/CE/ROHS |
Packaging & Delivery
Each unit is packaged in a small waterproof PE bag, then placed in a carton (approximately 200 pieces per carton, size: 46×30×30 cm). OEM/ODM packaging options available upon request.
About Rigoal
Founded in 2013, Rigoal specializes in producing various waterproof cables and connectors including M8, M12, M16, M23, and D-SUB types. Our products are widely used in sensors, industrial equipment, transportation facilities, medical devices, and more.
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2014, we export worldwide with a team of 101-200 professionals serving markets in Western Europe, North America, Oceania, and beyond.
How do we guarantee quality?
We conduct pre-production samples and final inspections before shipment to ensure product quality.
What can you buy from us?
We specialize in waterproof connectors and cables, including M8, M12, M16, M23, and D-SUB/USB types.
Why choose us?
Our expertise in waterproof connectors for industrial applications, combined with our commitment to quality and customer service, makes us a preferred supplier.
What services do we provide?
We accept various delivery terms (FOB, CFR, CIF, etc.) and payment methods (T/T, L/C, PayPal, etc.), and communicate in multiple languages to serve global customers.
